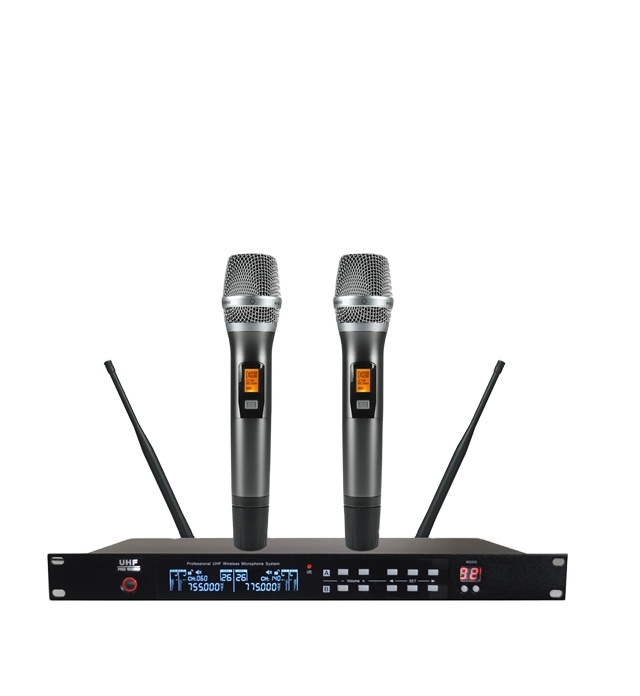

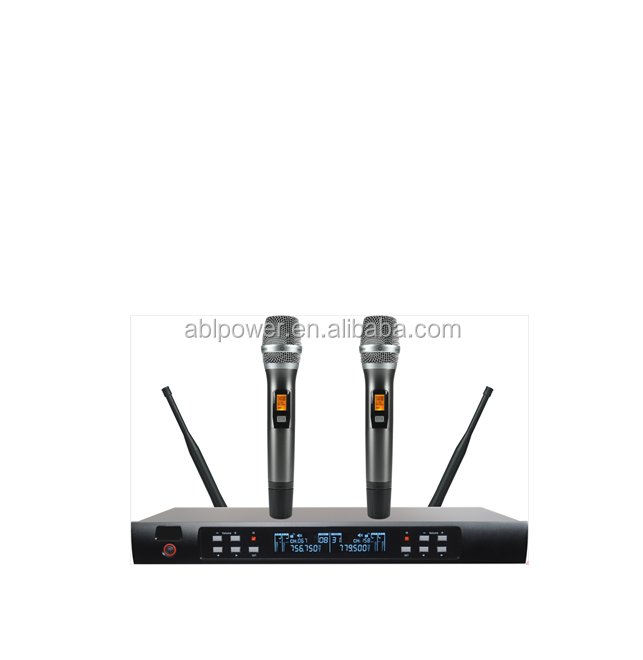

Receiver parameters:
Carrier frequency: UHF640~690MH
Modulation mode: PLL PLL integrated control
Receiving mode: FM/IRA infrared automatic locking frequency
Mode of oscillation: PLL phase locked loop comprehensive control
Rf stability: ±0.005%
Reception sensitivity: 12-32dbuv
Maximum deviation: ±35KHz with automatic volume control for audio compression and expansion processing
Band width: 50MHz
Frequency interval: 250KHz
Number of switchable frequencies: 200
Default channel: 200
Comprehensive S/N ratio: < 105dB
Comprehensive T.H.D. : > 0.5%
Integrated frequency response: 50Hz~16KHz±3dB
Output socket: balance/mix
Panel display: LCD LCD display RF/AF/CH/FQ/LOCK
Frequency adjustment: automatic and manual backup of IRA infrared ray
AC power supply: DC 12v-18vac
Parameters of handheld transmitter:
Carrier frequency band: uhf640-690mhz
Oscillation mode: PLL PLL - PLL - PLL - PLL - PLL - PLL - PLL - PLL - PLL - PLL
Band width: 50MHz
Transmission power: 10mW-30mW adjustable
Harmonic radiation: >-50db
Maximum deviation: ±35KHz with automatic volume control for audio compression and expansion processing
Voice head: moving coil
Battery usage: two 1.5VAA batteries
Frequency adjustment: IRA infrared automatic, manual backup operation display: LCD LCD display battery power, channel,

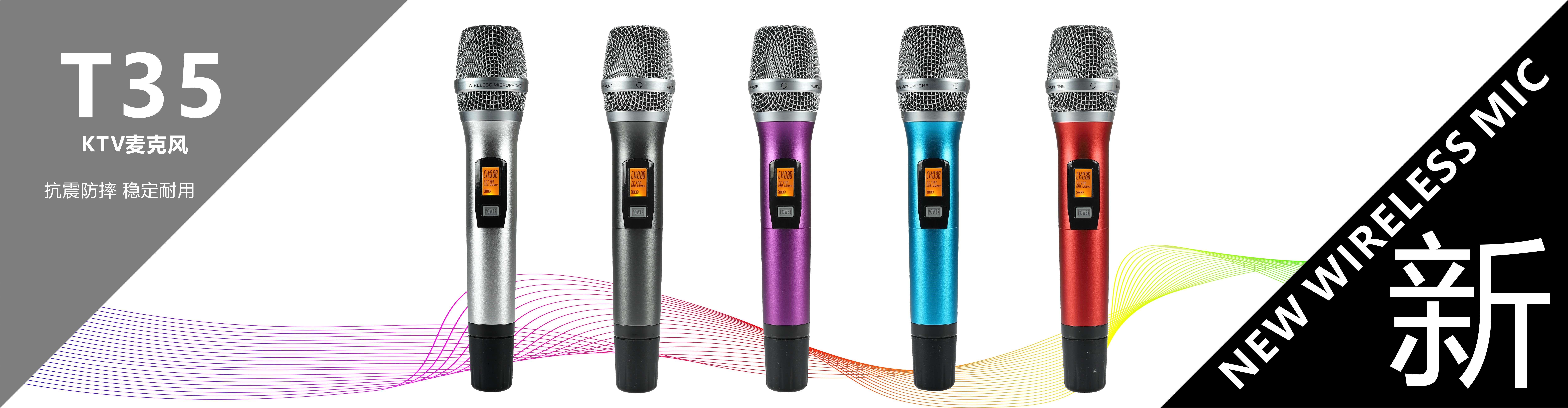

T35 microphone features
1. New circuit design, phase compensation, distortion correction, dynamic expansion and other advanced circuit performance more stable, more balanced sound, higher fidelity, panel button selection, digital tube display four different styles of singing mode
2.PLL integrated with VCO PLL integrated control technology makes rf signal performance more stable.
3. Double backup of IR infrared automatic frequency matching and SCAN automatic frequency searching function, SCAN can accurately and quickly search clean frequency points on the scene, and eliminate interference and serial frequency phenomenon caused by simultaneous use of multiple machines.
4. The function of random identification of digital pilot frequency by ID code can prevent the simultaneous use of interference and serial frequency by multiple machines.
5. Handmi aluminum reinforced structure against falling, better shock resistance, more durable.
6. Hand meter surface treatment oxidation coloring process, anti-alcohol and other corrosive longer, anti-wear and scraping degree of longer time.
7. Fix the hand microphone head screw and cooperate with the high strength elastic head to prevent the entertainment place guests from disassembling and prevent the microphone core from damaging.
8 manual mi with mute mode and non-mute mode switching function, after K song if the manual mi stop for 3 seconds not to move, no sound output to prevent squealing function, static standby for 5 minutes not to move automatically shut down with power saving function, conference speech must be rebooted long press on key for 10 seconds to cancel the mute mode, convenient for users to choose.
9. The manual microphone is equipped with power levels of 15mw and 30mw.
10. The host is equipped with SQ receiving intensity adjustment knob, which can flexibly find the range of 0~40M according to the size and distance of the compartment.
11. The host can use a combination of keys to set the interface lock to prevent users from misoperation, and can be set to boot use 000~999 times for easy maintenance.
12. Initiated the design of host 0~2K impedance matching adjustment function, can adjust the high, medium and bass more, can better match the sound system.

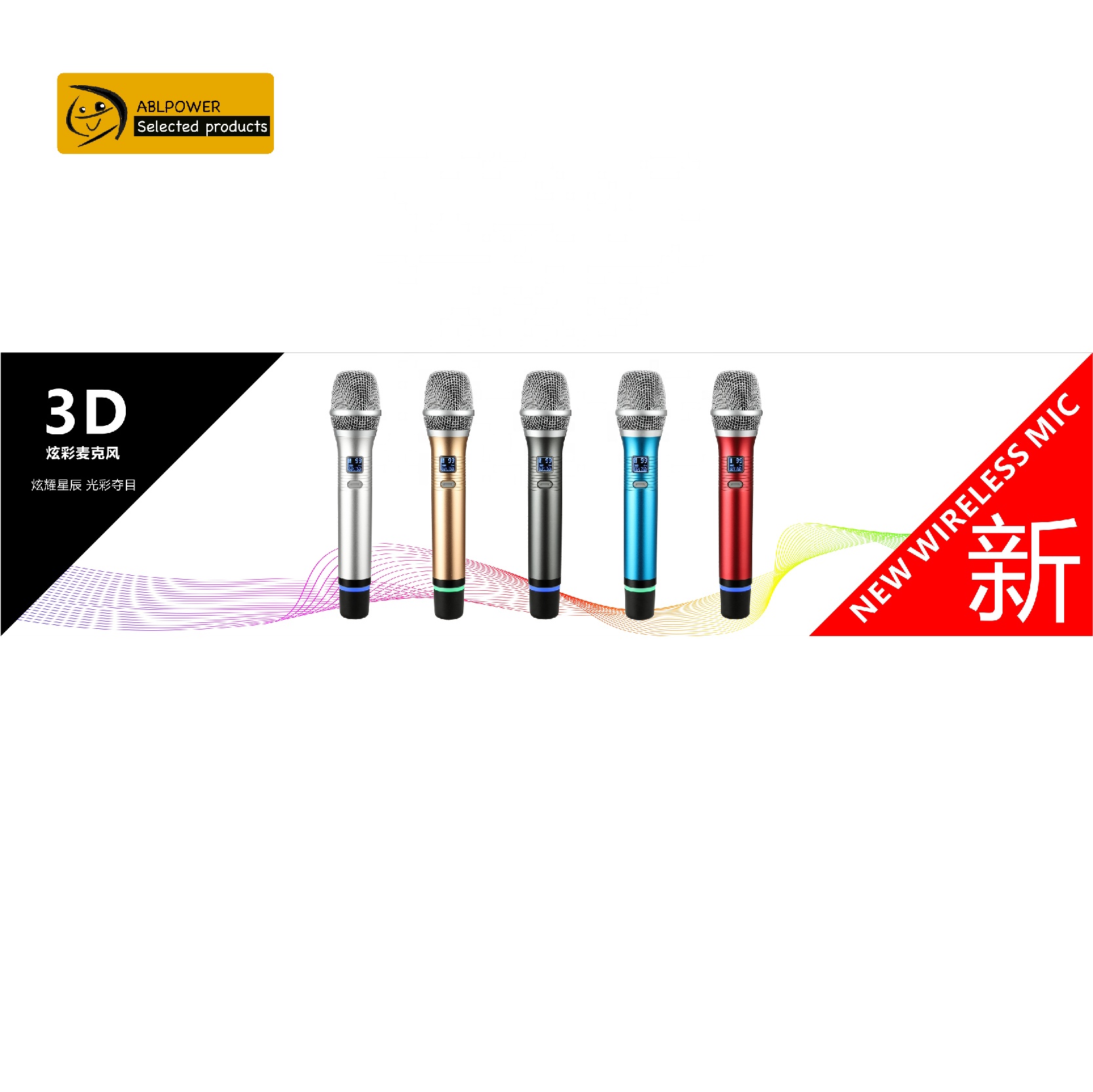

| 3D microphone | T35 microphone |
| T4 Microphone receiver | USD190 | USD182 |
